AlphaDeesp algorithm details

Call

Calling the alphaDeesp engine is done like so :

alphadeesp = AlphaDeesp(g_over, df_of_g, custom_layout, printer, simulator_data,sim.substation_in_cooldown, debug = debug) ranked_combinations = alphadeesp.get_ranked_combinations()

Alphadeesp hence gives you an oredered list of substations and topologies that should be relevant to solve your overload

Inputs

The following inputs will be required to be computed by the Simulation override.

  • g_over

    A newtorkx graph representation of the grid with flow values

  • df_of_g

    A dataframe representing a detailed view of the graph

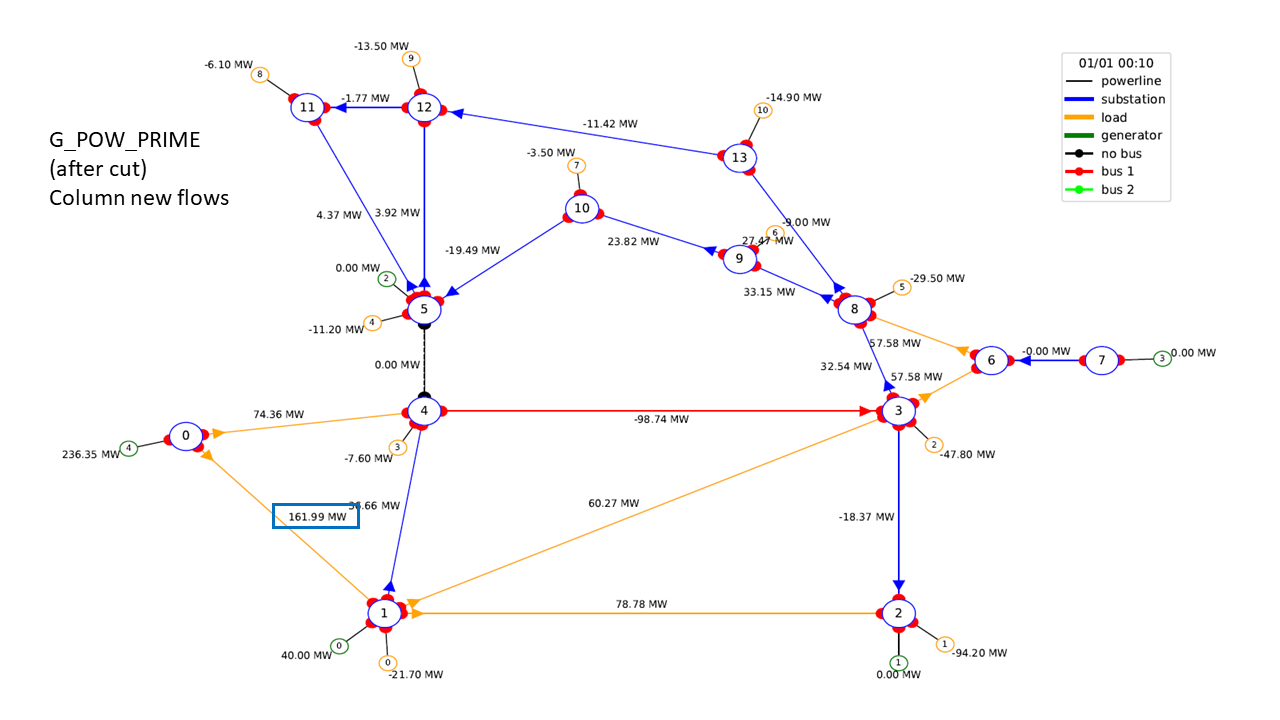

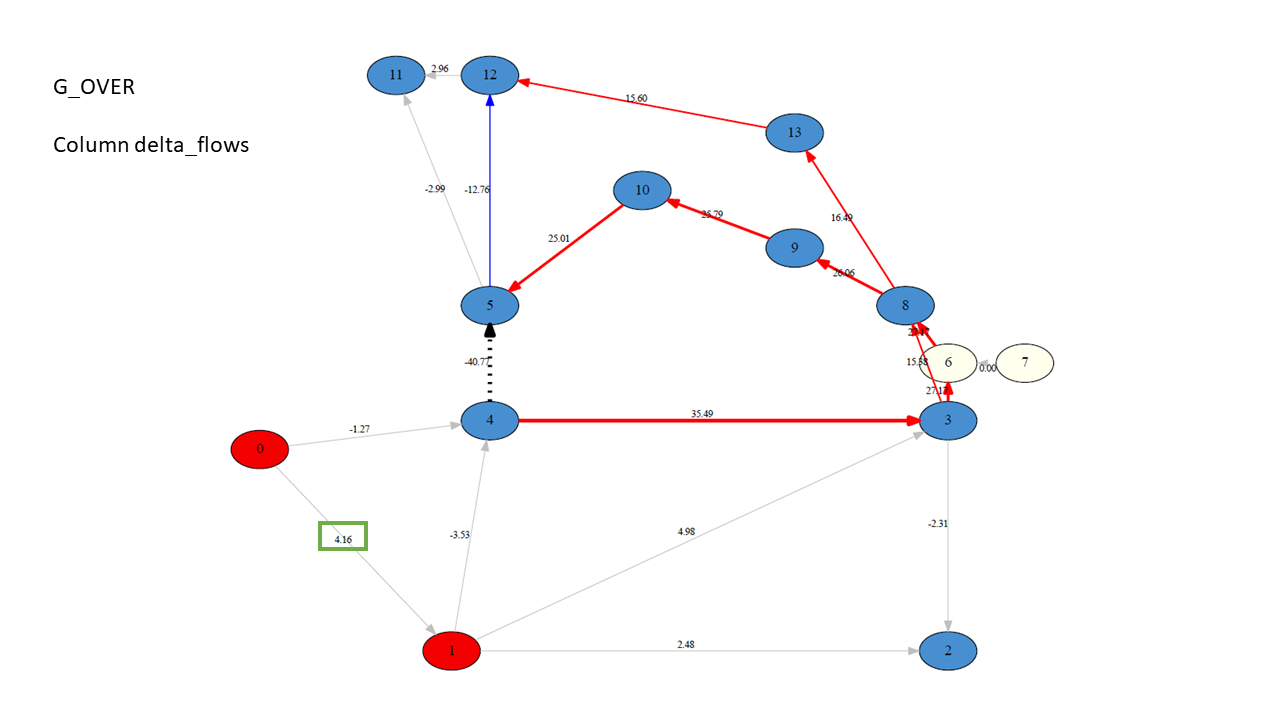

_images/df_of_g_l9PNG.png _images/g_pow_l9_df_of_g.png _images/g_pow_prime_grid2op_ltc9.PNG _images/g_over_df_l9.png
  • custom_layout

    The layout of the graph (list of (X,Y) coordinate for edges. Used for plotting.

  • printer

    A printer service for logs and graphs

  • simulator_data

    A dict composed of :

    • substations_elements

      A local representation of the network from G_OVER (G_POW - G_POW_PRIME) using AlphaDeesp model objects from network.py

      Each PRODUCTION or CONSUMPTION has the value of G_POW (the initial values)

      Each ORIGINLINE or EXTREMITYLINE has the values of flow(G_POW) - flow(G_POW_PRIME)

      {
      0: [

      PRODUCTION Object ID: 1, busbar_id: 0, value: 233.4587860107422 ,

      ORIGINLINE Object ID: 1, busbar_id: 0, connected to substation: 1, flow_value: [4.16] ,

      ORIGINLINE Object ID: 2, busbar_id: 0, connected to substation: 4, flow_value: [-1.27] ],

      1: [

      PRODUCTION Object ID: 2, busbar_id: 0, value: 40.0 ,

      CONSUMPTION Object ID: 1, busbar_id: 0, value: 21.700000762939453 ,

      ORIGINLINE Object ID: 3, busbar_id: 0, connected to substation: 2, flow_value: [2.48] ,

      ORIGINLINE Object ID: 4, busbar_id: 0, connected to substation: 3, flow_value: [4.98] ,

      ORIGINLINE Object ID: 5, busbar_id: 0, connected to substation: 4, flow_value: [-3.53] ,

      EXTREMITYLINE Object ID: 1, busbar_id: 0, connected to substation: 0, flow_value: [4.16] ],

      2: [

      PRODUCTION Object ID: 3, busbar_id: 0, value: 0.0 ,

      CONSUMPTION Object ID: 2, busbar_id: 0, value: 94.19999694824219 ,

      EXTREMITYLINE Object ID: 2, busbar_id: 0, connected to substation: 3, flow_value: [-2.31] ,

      EXTREMITYLINE Object ID: 3, busbar_id: 0, connected to substation: 1, flow_value: [2.48] ],

      3: [

      CONSUMPTION Object ID: 3, busbar_id: 0, value: 47.79999923706055 ,

      EXTREMITYLINE Object ID: 4, busbar_id: 0, connected to substation: 4, flow_value: [35.49] ,

      ORIGINLINE Object ID: 6, busbar_id: 0, connected to substation: 6, flow_value: [27.17] ,

      ORIGINLINE Object ID: 7, busbar_id: 0, connected to substation: 8, flow_value: [15.38] ,

      EXTREMITYLINE Object ID: 5, busbar_id: 0, connected to substation: 1, flow_value: [4.98] ,

      ORIGINLINE Object ID: 8, busbar_id: 0, connected to substation: 2, flow_value: [-2.31] ],

      4: [

      CONSUMPTION Object ID: 4, busbar_id: 0, value: 7.599999904632568 ,

      ORIGINLINE Object ID: 9, busbar_id: 0, connected to substation: 5, flow_value: [-40.77] ,

      EXTREMITYLINE Object ID: 6, busbar_id: 0, connected to substation: 0, flow_value: [-1.27] ,

      EXTREMITYLINE Object ID: 7, busbar_id: 0, connected to substation: 1, flow_value: [-3.53] ,

      ORIGINLINE Object ID: 10, busbar_id: 0, connected to substation: 3, flow_value: [35.49] ],

      5: [

      PRODUCTION Object ID: 4, busbar_id: 0, value: 0.0 ,

      CONSUMPTION Object ID: 5, busbar_id: 0, value: 11.199999809265137 ,

      ORIGINLINE Object ID: 11, busbar_id: 0, connected to substation: 12, flow_value: [-12.76] ,

      ORIGINLINE Object ID: 12, busbar_id: 0, connected to substation: 11, flow_value: [-2.99] ,

      EXTREMITYLINE Object ID: 8, busbar_id: 0, connected to substation: 10, flow_value: [25.01] ,

      EXTREMITYLINE Object ID: 9, busbar_id: 0, connected to substation: 4, flow_value: [-40.77] ],

      6: [

      EXTREMITYLINE Object ID: 10, busbar_id: 0, connected to substation: 7, flow_value: [0.0] ,

      ORIGINLINE Object ID: 13, busbar_id: 0, connected to substation: 8, flow_value: [27.17] ,

      EXTREMITYLINE Object ID: 11, busbar_id: 0, connected to substation: 3, flow_value: [27.17] ],

      7: [

      PRODUCTION Object ID: 5, busbar_id: 0, value: 0.0 ,

      ORIGINLINE Object ID: 14, busbar_id: 0, connected to substation: 6, flow_value: [0.0] ],

      8: [

      CONSUMPTION Object ID: 6, busbar_id: 0, value: 29.5 ,

      ORIGINLINE Object ID: 15, busbar_id: 0, connected to substation: 13, flow_value: [16.49] ,

      ORIGINLINE Object ID: 16, busbar_id: 0, connected to substation: 9, flow_value: [26.06] ,

      EXTREMITYLINE Object ID: 12, busbar_id: 0, connected to substation: 3, flow_value: [15.38] ,

      EXTREMITYLINE Object ID: 13, busbar_id: 0, connected to substation: 6, flow_value: [27.17] ],

      9: [

      CONSUMPTION Object ID: 7, busbar_id: 0, value: 9.0 ,

      ORIGINLINE Object ID: 17, busbar_id: 0, connected to substation: 10, flow_value: [25.79] ,

      EXTREMITYLINE Object ID: 14, busbar_id: 0, connected to substation: 8, flow_value: [26.06] ],

      10: [

      CONSUMPTION Object ID: 8, busbar_id: 0, value: 3.5 ,

      ORIGINLINE Object ID: 18, busbar_id: 0, connected to substation: 5, flow_value: [25.01] ,

      EXTREMITYLINE Object ID: 15, busbar_id: 0, connected to substation: 9, flow_value: [25.79] ],

      11: [

      CONSUMPTION Object ID: 9, busbar_id: 0, value: 6.099999904632568 ,

      EXTREMITYLINE Object ID: 16, busbar_id: 0, connected to substation: 12, flow_value: [2.96] ,

      EXTREMITYLINE Object ID: 17, busbar_id: 0, connected to substation: 5, flow_value: [-2.99] ],

      12: [

      CONSUMPTION Object ID: 10, busbar_id: 0, value: 13.5 ,

      EXTREMITYLINE Object ID: 18, busbar_id: 0, connected to substation: 13, flow_value: [15.6] ,

      EXTREMITYLINE Object ID: 19, busbar_id: 0, connected to substation: 5, flow_value: [-12.76] ,

      ORIGINLINE Object ID: 19, busbar_id: 0, connected to substation: 11, flow_value: [2.96] ],

      13: [

      CONSUMPTION Object ID: 11, busbar_id: 0, value: 14.899999618530273 ,

      EXTREMITYLINE Object ID: 20, busbar_id: 0, connected to substation: 8, flow_value: [16.49] ,

      ORIGINLINE Object ID: 20, busbar_id: 0, connected to substation: 12, flow_value: [15.6] ]

      }

    • substation_to_node_mapping

    • internal_to_external_mapping

      A dict linking the substation ids from substations_elements (internal) to the observation substations (external)

    _images/internal_to_external_mapping_explanation_console.png
  • substation_in_cooldown

    List of substation that are in cooldown

  • debug

    Boolean flag for debugging purposes

Outputs

The alphaDeesp object then provides a list : ranked_combinations

This is a list of dataframes with the following columns :

  • score

    the score of the topology from 0(worst) to 4(best)

  • topology

    An array of integers (bus_ids) showing the topology of a node

  • node

    The node on which the topology was applied

Simulating AlphaDeesp suggestions

This ranked_combinations list is then used to simulate all topologies with the Simulation override : expert_system_results, actions = sim.compute_new_network_changes(ranked_combinations)

You eventually know which selected topologies are indeed successful.

Last Note

AlphaDeesp substation and topology rankings could be improved to make the selection of actions always more relevant and efficient.
